BSP thread

BADA uses standard EN ISO 228-1 to produce threads of the standard catalogue brass fittings for

threaded tube and pipe. This type of thread is also known as BSP parallel thread (cylindrical) or

"Gas" thread (G).

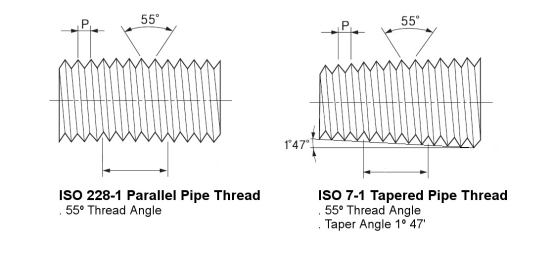

The cylindrical thread to ISO 228-1 is a type of Whitworth thread, a name derived from the inventor

of it and whose origins date back to England in the mid-nineteenth century. Whitworth shape is

based on a thread with thread angle of 55 degrees, with rounded crests and roots. This type of thread

became the most widely used for connecting threaded pipe and emerged as British Standard, which

became known as standard threaded British pipe or BSP (for its acronym: British Standard Pipe ),

in two variants: conical (BSPT, t "tapered"), and in its parallel or cylindrical shape (BSPP, the last p of "parallel").

As mentioned, the BSP threads are threads with profile "Gas" and can be of two types:

Denomination example: 1/2" thread BSP parallel → G 1/2.

Tapered: the conical male can be installed on a female thread conical or parallel. Denomination following

ISO 7-1 (EN 10226-1) is R for external thread (male) and Rp and Rc for internal thread (female),

with Rp if cylindrical and Rc when conical.

Denomination example: male thread 1/2" BSP tapered → R 1/2.

In BADA, we also manufacture conical threads on request, according to standard ISO 7-1 or others,

such as the American standard NPT (National Pipe Thread), which also defines conical thread and we

will talk some other time.
